Controllers

Currently in Numaflow, there are 3 CRDs introduced, each one has a corresponding controller.

  • interstepbufferservices.numaflow.numaproj.io
  • pipelines.numaflow.numaproj.io
  • vertices.numaflow.numaproj.io

The source code of the controllers is located at ./pkg/reconciler/.

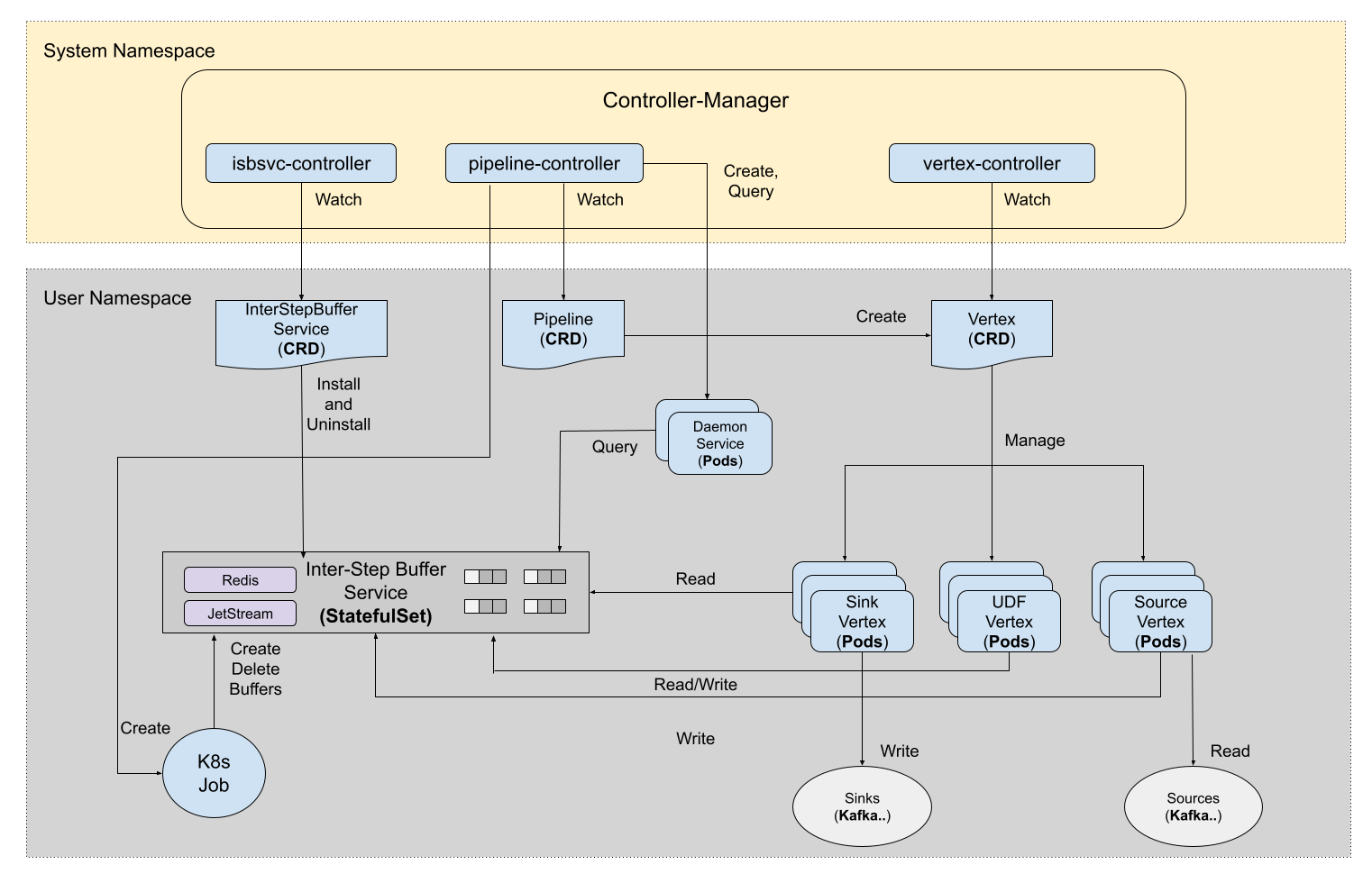

Architecture

Inter-Step Buffer Service Controller​

Inter-Step Buffer Service Controller is used to watch InterStepBufferService object, and manage generated resources.

Pipeline Controller​

Pipeline Controller is used to watch Pipeline objects, it does following major things when there's a pipeline object created.

  • Spawn a Kubernetes Job to create buffers and buckets in the Inter-Step Buffer Services.
  • Create Vertex objects according to .spec.vertices defined in Pipeline object.
  • Create some other Kubernetes objects used for the Pipeline, such as a Deployment and a Service for daemon service application.

Vertex Controller​

Vertex controller watches the Vertex objects, based on the replica defined in the spec, creates a number of pods to run the workloads.
